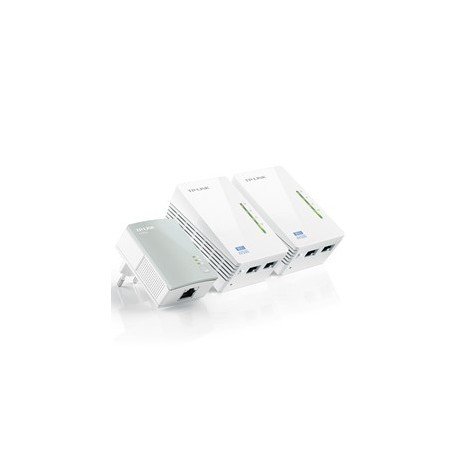

** TL-PA4220T KIT contains TL-WPA4220 x 2 and TL-PA4010 x 1
Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a
seamless unified home network
HomePlug AV standard providing up to 500Mbps high speed data
transmission over a homes existing electrical wiring, ideal for lag-free HD or
3D video streaming and online gaming
Extend 300Mbps wireless connections to previously hard-to-reach areas of
your home and office
Two Ethernet ports allow your TVs, game consoles, or PCs connect to the
Internet
Up to 300-meter range over the household power circuit
Easy to install, just plug in and play
128-bit AES encryption easily at a push of "Pair" Button
Supports IGMP managed multicast IP transmission, optimizing IPTV
streaming
CARACTERÍSTICAS DE HARDWARE
Estándares y protocolos HomePlug AV, IEEE802.3, IEEE802.3u,
IEEE802.11b/g/n
Interfaces 2*10/100Mbps Ethernet Port TL-WPA4220
1*10/100Mbps Ethernet Port TL-PA4010
Tipo de Enchufe EU, UK
Botones Pair, Reset, Wi-Fi/Wi-Fi Clone
Indicador LED PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensiones (W X D X H) 3.7 x 2.1 x 1.6 in. (94×54×40mm)
Consumo de potencia Maximum: 12.916W (220V/50Hz)
Typical: 12.302W (220V/50Hz)
Standby: 8.780W (220V/50Hz)
Alcance 300 Meters over electrical circuit
CARACTERÍSTICAS DE SOFTWARE
Tecnología de modulación OFDM (PLC)
Encriptación Powerline Security:
128-bit AES
Wireless Security:
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTROS
Certificaciones CE, FCC, RoHS
Contenido del Paquete Powerline Ethernet Adapter TL-WPA4220 *2 &
TL-PA4010 *1
6.5 ft. (2 m) Ethernet cable (RJ45)
Resource CD
Quick Installation Guide
Requisitos del sistema Windows 2000/XP/2003/Vista, Windows 7/8,
Mac, Linux
Factores ambientales Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
